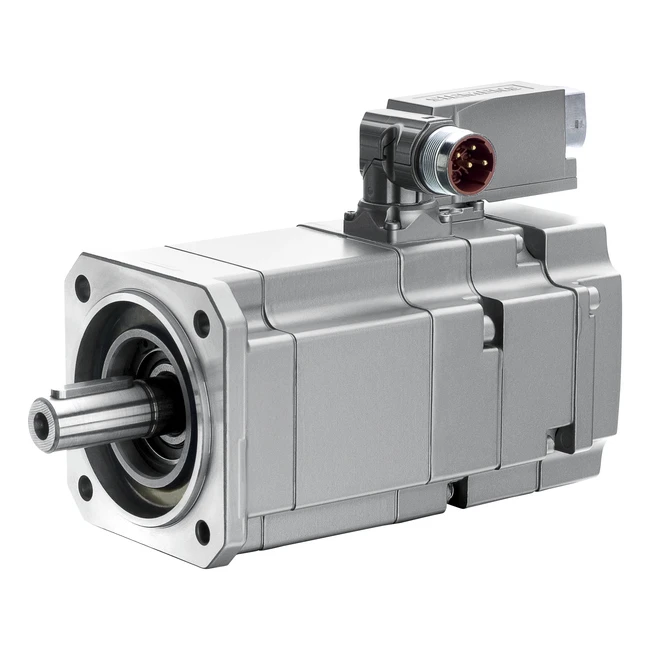

Siemens 1FK7042-5AK71-1FH3

Model Number:1FK7042-5AK71-1FH3

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens SIMOTICS S 1FK7 Compact synchronous servo motor replacement spare part rated at 3.0 Nm, 100K, 6000 rpm, 1.02 kW, self-cooled IM B5 (IM V1, IM V3), 270-degree rotatable connectors, A-2048 absolute encoder (2048 S/R) with DRIVE-CLiQ interface (10% power reduction), smooth shaft (Tolerance N), holding brake, IP64 protection class, painted RAL7016.

The Siemens 1FK7042-5AK71-1FH3 SIMOTICS S-1FK7 Compact spare part synchronous servo motor delivers 3.0 Nm torque and 1.02 kW output at 6000 rpm. Equipped with an A-2048 2048 S/R absolute feedback encoder using a DRIVE-CLiQ interface (with a 10% power reduction factor applied), it ensures precise digital drive matching. Key specs include a self-cooled IM B5 flange frame finished in RAL7016 paint, 270-degree rotatable power/signal plug, smooth cylindrical shaft (Tolerance N), integrated holding brake, and IP64 protection. Fast B2B sourcing, import freight clearance, and complete technical support are available in Pakistan and worldwide.

Parameter	Specification Rating
Brand	Siemens
Finish	Paint RAL7016
Series	1FK7 Compact
Torque	3.0 Nm
Cooling	Self-cooled
Interface	DRIVE-CLiQ
Shaft Type	Smooth Shaft, Tolerance N
Rated Power	1.02 kW
Rated Speed	6000 rpm
Encoder Type	Absolute Encoder 2048 S/R (A-2048)
Product Type	SIMOTICS S Synchronous Servo Motor
Holding Brake	With Holding Brake
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Performance Derating	10% due to absolute encoder
Mounting Construction	IM B5 (IM V1, IM V3)
