Siemens 1FK7042-2AK71-1RB0-Z

Model Number:1FK7042-2AK71-1RB0-Z

₨436,270.26PKR

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

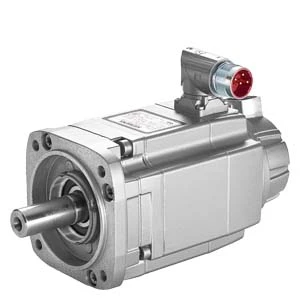

Siemens SIMOTICS S 1FK7-CT synchronous motor with PN=0.94 kW, UCI=600 V, M0=3.0 Nm (100K), NN=6000 rpm, naturally cooled IM B5 (IM V1, IM V3) flange 1, rotatable power connector, AM20DQI 20-bit + 12-bit multi-turn absolute encoder with DRIVE-CLiQ, keyed shaft (Tolerance N), holding brake, and IP64 protection.

The Siemens 1FK7042-2AK71-1RB0-Z SIMOTICS S-1FK7 CT synchronous servo motor offers 0.94 kW power output and 3.0 Nm torque at 6000 rpm on a 600 V DC link supply. It features an AM20DQI 20-bit + 12-bit multi-turn absolute encoder with a DRIVE-CLiQ digital interface for fast parameter auto-configuration. Complete with a keyed shaft (Tolerance N), an integrated holding brake, an IM B5 flange design, rotatable power connectors, and IP64 protection, it supports precision axes. B2B global supply options include customs handling, international logistics, and engineering assistance across Pakistan and global hubs.

Parameter	Specification Rating
Brand	Siemens
Flange	Design Flange 1
Series	1FK7-CT
Cooling	Naturally Cooled
Connector	Rotatable Power Connector
Interface	DRIVE-CLiQ
Shaft Type	Shaft with Key, Tolerance N
Encoder Type	20-bit + 12-bit Multi-Turn Absolute Encoder (AM20DQI)
Product Type	SIMOTICS S Synchronous Motor
Holding Brake	With Holding Brake
Rated Power (PN)	0.94 kW
Rated Speed (NN)	6000 rpm
Protection Rating	IP64
Static Torque (M0)	3.0 Nm (100K)
DC Link Voltage (UCI)	600 V
Mounting Construction	IM B5 (IM V1, IM V3)
