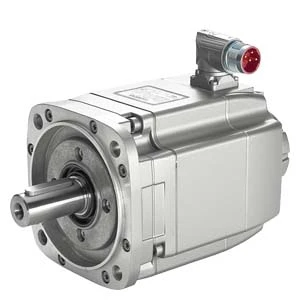

Siemens 1FK7034-2AK71-1RG0

Model Number:1FK7034-2AK71-1RG0

₨407,342.55PKR

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens SIMOTICS S 1FK7-CT synchronous motor with PN=0.63 kW, UCI=600 V DC link voltage, M0=1.6 Nm (100K), NN=6000 rpm, naturally cooled IM B5 (IM V1, IM V3) flange 1, rotatable power connector, AM20DQI 20-bit + 12-bit multi-turn absolute encoder with DRIVE-CLiQ interface, Tolerance N smooth shaft, without holding brake, IP64 protection rating.

The Siemens 1FK7034-2AK71-1RG0 SIMOTICS S-1FK7 Compact (CT) synchronous motor is engineered for high-speed dynamic servo applications running on 600 V DC link voltages. Outputting 0.63 kW power with 1.6 Nm static torque at 6000 rpm, it utilizes an AM20DQI 20-bit + 12-bit multi-turn absolute encoder featuring a direct DRIVE-CLiQ digital interface. Features include an IM B5 flange, rotatable power plug, Tolerance N smooth shaft, IP64 sealing, and execution without a holding brake. Complete procurement services, customs handling, direct import shipping, and local drive engineering support are available across Pakistan and international markets.

Parameter	Specification Rating
Brand	Siemens
Flange	Flange 1
Series	1FK7-CT
Cooling	Naturally Cooled
Connector	Rotatable Power Connector
Interface	DRIVE-CLiQ
Shaft Type	Smooth Shaft, Tolerance N
Encoder Type	20-bit + 12-bit Multi-Turn Absolute Encoder (AM20DQI)
Product Type	SIMOTICS S Synchronous Servo Motor
Holding Brake	Without Holding Brake
Rated Power (PN)	0.63 kW
Rated Speed (NN)	6000 rpm
Protection Rating	IP64
Static Torque (M0)	1.6 Nm (100K)
DC Link Voltage (UCI)	600 V
Mounting Construction	IM B5 (IM V1, IM V3)
