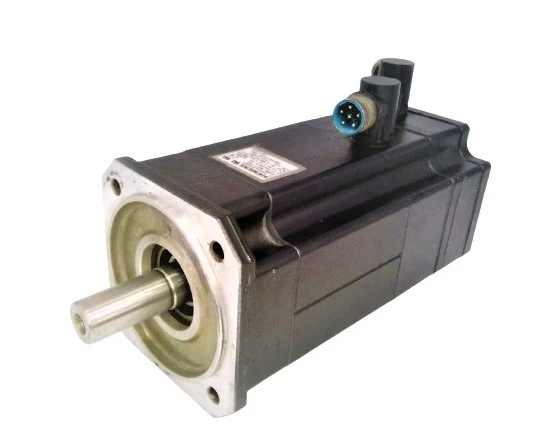

Siemens 1FK6103-8AF71-1TH0

Model Number:1FK6103-8AF71-1TH0

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens 1FK6 8-pole naturally cooled synchronous servo motor supplying 36 Nm torque, 100K thermal class, 3000 rpm, IM B5 (V1, V3) flange, 270-degree rotatable connectors, 2-pole resolver (P=1), smooth shaft (Tolerance N), integrated holding brake, and IP64 protection.

The Siemens 1FK6103-8AF71-1TH0 8-pole synchronous servo motor provides 36 Nm continuous torque at 3000 rpm for demanding motion axes requiring fail-safe holding capabilities. Featuring an integrated electromechanical holding brake and a 2-pole resolver (P=1) feedback system, this naturally cooled 100K motor ensures operational stability. Additional specs include IM B5 (V1, V3) flange mounting, 270-degree rotatable signal/power plugs, a smooth shaft (Tolerance N), and IP64 enclosure protection. We manage complete B2B sourcing, import logistics, global express shipping, and offer technical engineering support in Pakistan and globally.

Parameter	Specification Rating
Brand	Siemens
Poles	8-pole
Series	1FK6
Torque	36 Nm
Cooling	Naturally Cooled
Shaft Type	Smooth Shaft, Tolerance N
Rated Speed	3000 rpm
Product Type	Synchronous Servo Motor
Feedback Type	Resolver 2-pole (P=1)
Holding Brake	Yes
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Mounting Construction	IM B5 (V1, V3)
