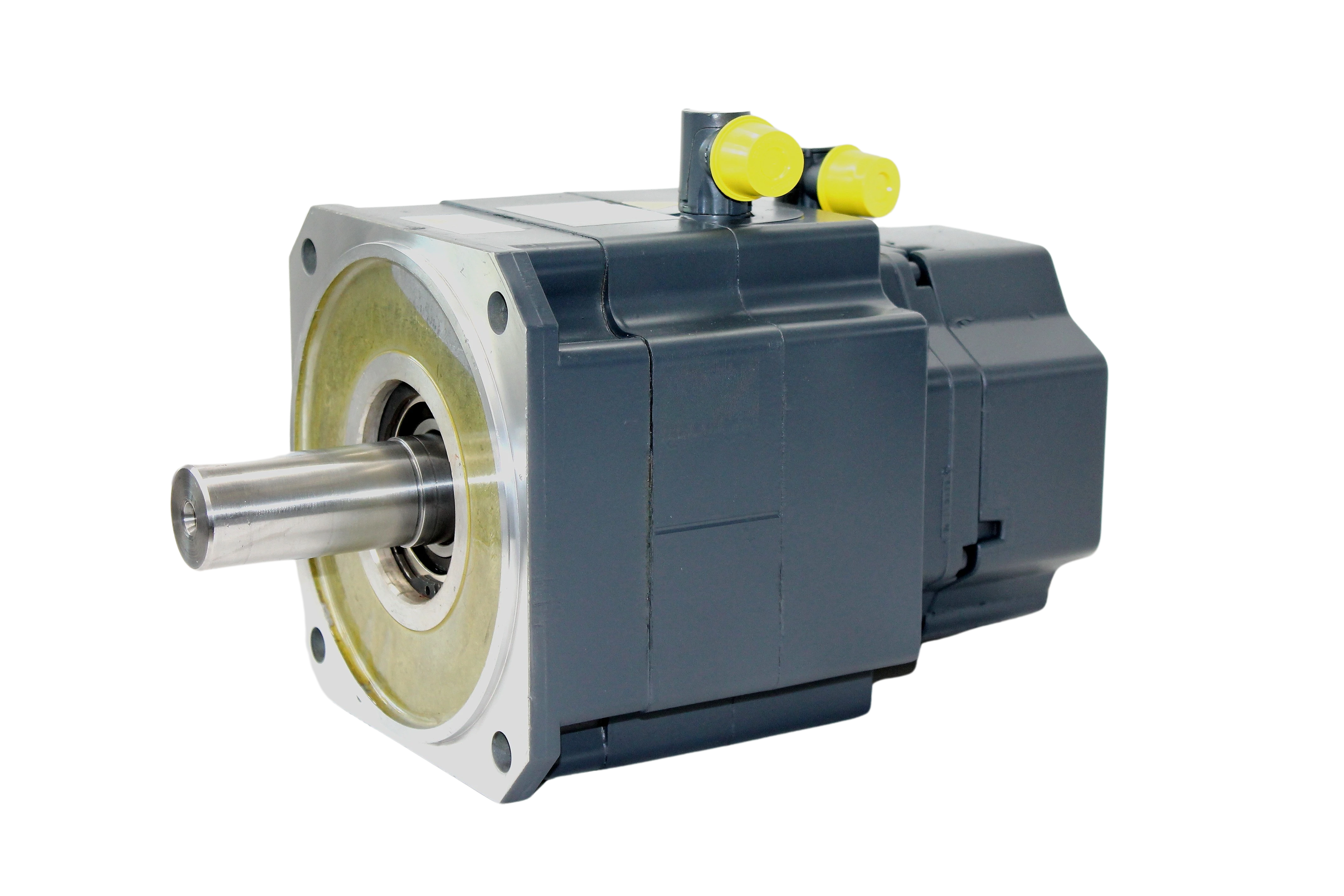

Siemens 1FK6103-8AF71-1TG0

Model Number:1FK6103-8AF71-1TG0

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens 1FK6 8-pole naturally cooled synchronous servo motor rated at 36 Nm, 100K thermal class, 3000 rpm, IM B5 (V1, V3) mounting, 270-degree rotatable connector plug, 2-pole resolver (P=1), smooth shaft (Tolerance N), without holding brake, and IP64 protection rating.

The Siemens 1FK6103-8AF71-1TG0 8-pole synchronous servo motor delivers 36 Nm of continuous static torque at 3000 rpm for high-load industrial positioning systems. Equipped with a rugged 2-pole resolver (P=1), it provides reliable speed and position feedback under severe environmental noise and vibration. Designed with an IM B5 flange pattern, 270-degree rotatable plug connections, a Tolerance N smooth shaft, IP64 sealing, and no internal holding brake, it integrates smoothly into SINAMICS system architectures. Industrial buyers can access global procurement, customs import handling, and technical drive services in Pakistan and worldwide.

Parameter	Specification Rating
Brand	Siemens
Poles	8-pole
Series	1FK6
Torque	36 Nm
Cooling	Naturally Cooled
Shaft Type	Smooth Shaft, Tolerance N
Rated Speed	3000 rpm
Product Type	Synchronous Servo Motor
Feedback Type	Resolver 2-pole (P=1)
Holding Brake	Without Holding Brake
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Mounting Construction	IM B5 (V1, V3)
