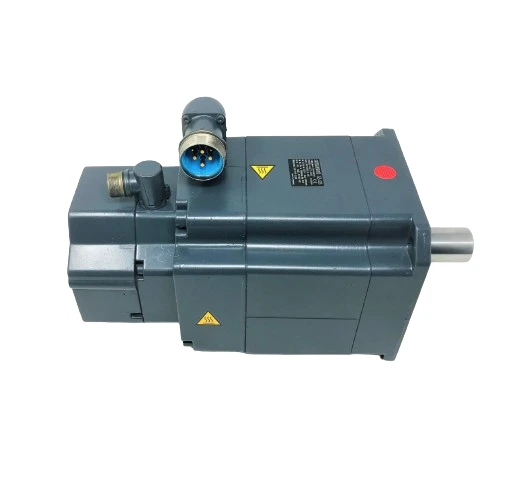

Siemens 1FK6103-8AF71-1AG0

Model Number:1FK6103-8AF71-1AG0

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens 1FK6 8-pole naturally cooled synchronous servo motor rated at 36 Nm, 100K thermal class, 3000 rpm, IM B5 (V1, V3) mounting, 270-degree rotatable connectors, I-2048 sin/cos 1 Vpp 2048 S/R incremental encoder, smooth shaft (Tolerance N), without holding brake, and IP64 protection.

The Siemens 1FK6103-8AF71-1AG0 8-pole naturally cooled synchronous servo motor provides high torque output of 36 Nm at a rated speed of 3000 rpm for heavy manufacturing machinery. Built within a 100K thermal class frame with IM B5 (V1, V3) mounting, it features an integrated I-2048 sin/cos 1 Vpp 2048 pulse/rev incremental encoder for accurate position sensing. Additional features include 270-degree rotatable power and signal connectors, a Tolerance N smooth shaft, IP64 enclosure protection, and design without a holding brake. Global supply chain procurement, import logistics, and local engineering support are available in Pakistan and worldwide.

Parameter	Specification Rating
Brand	Siemens
Poles	8-pole
Series	1FK6
Torque	36 Nm
Cooling	Naturally Cooled
Shaft Type	Smooth Shaft, Tolerance N
Rated Speed	3000 rpm
Encoder Type	Incremental Encoder Sin/Cos 1 Vpp 2048 S/R (I-2048)
Product Type	Synchronous Servo Motor
Holding Brake	Without Holding Brake
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Mounting Construction	IM B5 (V1, V3)
