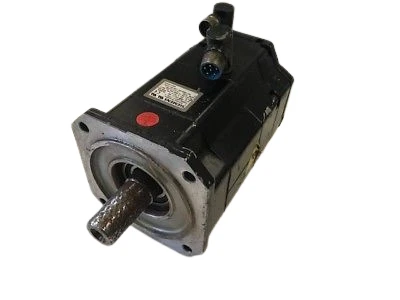

Siemens 1FK6083-6AF71-1SA0

Model Number:1FK6083-6AF71-1SA0

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens 1FK6 6-pole naturally cooled synchronous servo motor rated at 16 Nm, 100K thermal class, 3000 rpm, IM B5 (V1, V3) flange, 270-degree rotatable connectors, multi-pole resolver, shaft with feather key (Tolerance N), without holding brake, and IP64 protection.

The Siemens 1FK6083-6AF71-1SA0 6-pole naturally cooled synchronous servo motor delivers high continuous torque density of 16 Nm at 3000 rpm. Equipped with a multi-pole resolver feedback system, it ensures robust position feedback in high-vibration and high-temperature environments. Physical specifications include an IM B5 (V1, V3) mounting structure, 270-degree rotatable power and signal connectors, a feather key drive shaft (Tolerance N), IP64 enclosure protection, and operation without a holding brake. Global industrial supply, import customs logistics, and dedicated technical engineering services are available in Pakistan and worldwide.

Parameter	Specification Rating
Brand	Siemens
Poles	6-pole
Series	1FK6
Torque	16 Nm
Cooling	Naturally Cooled
Shaft Type	Feather Key, Tolerance N
Rated Speed	3000 rpm
Product Type	Synchronous Servo Motor
Feedback Type	Resolver Multi-pole
Holding Brake	Without Holding Brake
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Mounting Construction	IM B5 (V1, V3)
