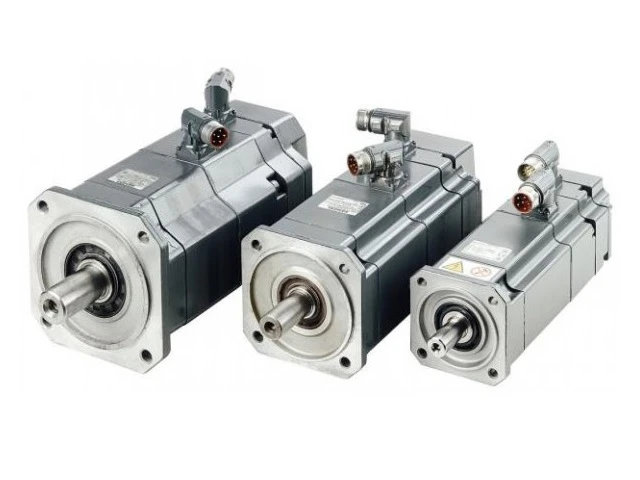

Siemens 1FK6063-6AF71-1TA0 Synchronous Servo Motor

Model Number:1FK6063-6AF71-1TA0

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens 1FK6 6-pole naturally cooled synchronous servo motor rated at 11 Nm, 100K thermal class, 3000 rpm, IM B5 (V1, V3) frame, 270-degree rotatable connectors, 2-pole resolver (P=1), shaft with feather key (Tolerance N), without holding brake, and IP64 protection.

The Siemens 1FK6063-6AF71-1TA0 synchronous 6-pole AC servo motor provides robust torque control for industrial positioning systems subject to vibration and harsh environments. Rated for 11 Nm continuous standstill torque at 3000 rpm, this naturally cooled IM B5 motor utilizes an ultra-reliable 2-pole resolver (P=1) feedback mechanism. The motor is constructed with 270-degree rotatable connectors, a keyed drive shaft (Tolerance N), IP64 enclosure sealing, and operates without an internal holding brake. Our worldwide industrial sales network provides fast supply, import logistics, customs clearance, and dedicated engineering support in Pakistan and globally.

Parameter	Specification Rating
Brand	Siemens
Poles	6-pole
Series	1FK6
Torque	11 Nm
Cooling	Naturally Cooled
Shaft Type	Feather Key, Tolerance N
Rated Speed	3000 rpm
Product Type	Synchronous Servo Motor
Feedback Type	Resolver 2-pole (P=1)
Holding Brake	Without Holding Brake
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Mounting Construction	IM B5 (V1, V3)
