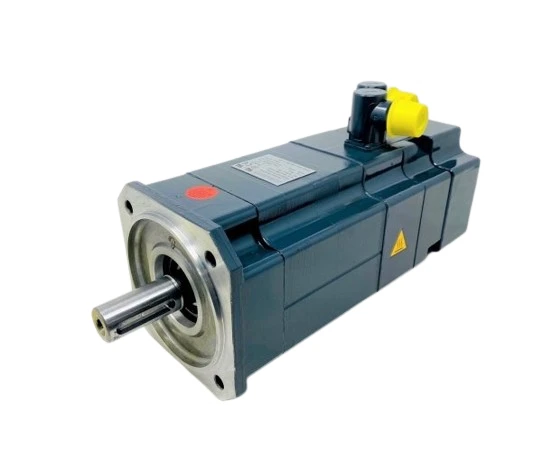

Siemens 1FK6063-6AF71-1EB0 Synchronous Servo Motor

Model Number:1FK6063-6AF71-1EB0

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens 1FK6 6-pole naturally cooled synchronous servo motor supplying 11 Nm torque, 100K thermal rating, 3000 rpm, IM B5 (V1, V3) flange, 270-degree rotatable connectors, EnDat 2048 S/R absolute encoder (A-2048), feather key shaft (Tolerance N), integrated holding brake, and IP64 protection rating.

The Siemens 1FK6063-6AF71-1EB0 naturally cooled 6-pole synchronous servo motor delivers high continuous torque density of 11 Nm at 3000 rpm. Designed with an EnDat 2048 S/R (A-2048) absolute encoder, this motor provides absolute position tracking without requiring homing routines after power loss. It features IM B5 flange mounting, 270-degree rotatable power and signal connectors, a keyed shaft (Tolerance N), an internal holding brake, and an IP64 rated enclosure. Global procurement services, direct air freight, import handling, and technical drive integration assistance are provided across Pakistan and international markets.

Parameter	Specification Rating
Brand	Siemens
Poles	6-pole
Series	1FK6
Torque	11 Nm
Cooling	Naturally Cooled
Shaft Type	Feather Key, Tolerance N
Rated Speed	3000 rpm
Encoder Type	Absolute Encoder EnDat 2048 S/R (A-2048)
Product Type	Synchronous Servo Motor
Holding Brake	Yes
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Mounting Construction	IM B5 (V1, V3)
