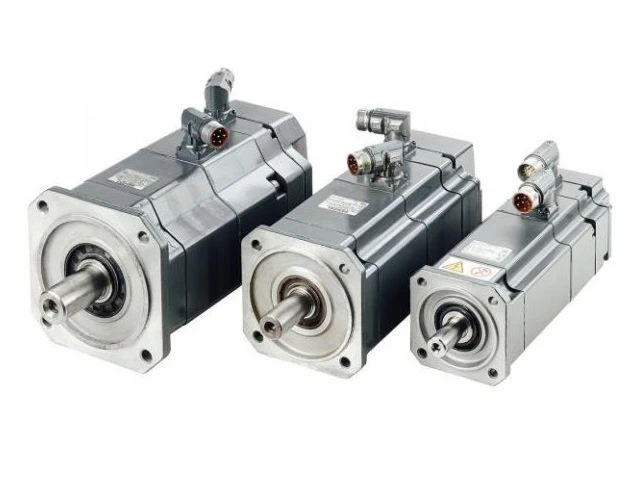

Siemens 1FK6063-6AF71-1AB0 Synchronous Servo Motor

Model Number:1FK6063-6AF71-1AB0

—

Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.

Available Conditions:

New

Siemens 1FK6 6-pole naturally cooled synchronous servo motor rated at 11 Nm, 100K thermal class, 3000 rpm, IM B5 (V1, V3) mounting structure, 270-degree rotatable power/signal plug, I-2048 sin/cos 1 Vpp 2048 S/R incremental encoder, shaft with feather key (Tolerance N), holding brake, and IP64 protection rating.

The Siemens 1FK6063-6AF71-1AB0 6-pole naturally cooled synchronous servo motor delivers 11 Nm of static torque at a rated speed of 3000 rpm for heavy-duty industrial automation applications. Featuring an IM B5 (V1, V3) mounting configuration, 100K thermal rating, and 270-degree rotatable power and signal connectors, it uses an integrated I-2048 sin/cos 1 Vpp 2048 pulse/rev incremental encoder for feedback control. Built with a keyed shaft (Tolerance N), an integrated holding brake, and IP64 protection, it supports demanding drive axes. B2B import logistics, international sourcing, and complete on-site or remote engineering support are available in Pakistan and globally.

Parameter	Specification Rating
Brand	Siemens
Poles	6-pole
Series	1FK6
Torque	11 Nm
Cooling	Naturally Cooled
Shaft Type	Feather Key, Tolerance N
Rated Speed	3000 rpm
Encoder Type	Incremental Encoder Sin/Cos 1 Vpp 2048 S/R (I-2048)
Product Type	Synchronous Servo Motor
Holding Brake	Yes
Thermal Class	100K
Protection Rating	IP64
Connector Adjustment	Rotatable by 270 deg
Mounting Construction	IM B5 (V1, V3)
