Siemens

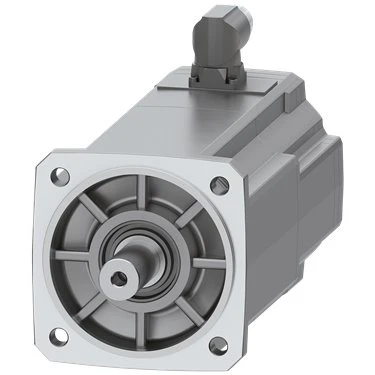

Siemens 1FK2206-4AF10-0SA0-Z A31+M00+R07 SIMOTICS S Servo Motor
Model Number:
1FK2206-4AF10-0SA0-Z-A31M00R07—
Note: Prices are for reference only. Submit an official request for quote (RFQ) to confirm exact pricing and availability.
Available Conditions:
New
Siemens SIMOTICS S-1FK2 CT servomotor featuring M0=12 Nm, PN=2.85 kW at nN=3000 rpm (380-480 V), PN=1.72 kW at nN=1500 rpm (200-240 V), integrated parking brake, IP64 protection, D24 x 50 mm cylindrical shaft, AS22DQC 22-bit singleturn absolute encoder, steerable M23 OCC plug, and Z-options A31+M00+R07.
The Siemens 1FK2206-4AF10-0SA0-Z A31+M00+R07 SIMOTICS S-1FK2 Compact servomotor is built for heavy-duty motion control tasks in complex automated production lines. Operating at 12 Nm static torque (M0), it outputs 2.85 kW at 3000 rpm under 380-480 V input or 1.72 kW at 1500 rpm under 200-240 V supply. The motor includes an integrated parking brake, IP64 protection rating, a D24 x 50 mm cylindrical smooth shaft, an AS22DQC singleturn 22-bit absolute feedback encoder, and a steerable M23 OCC power/signal connector configured with Z option set A31+M00+R07. Facilitated via our global procurement and import logistics network, we ensure fast delivery and specialized drive technical support in Pakistan and worldwide.
